Rain and wind sensor for ZIP SCREEN, Bellano S25

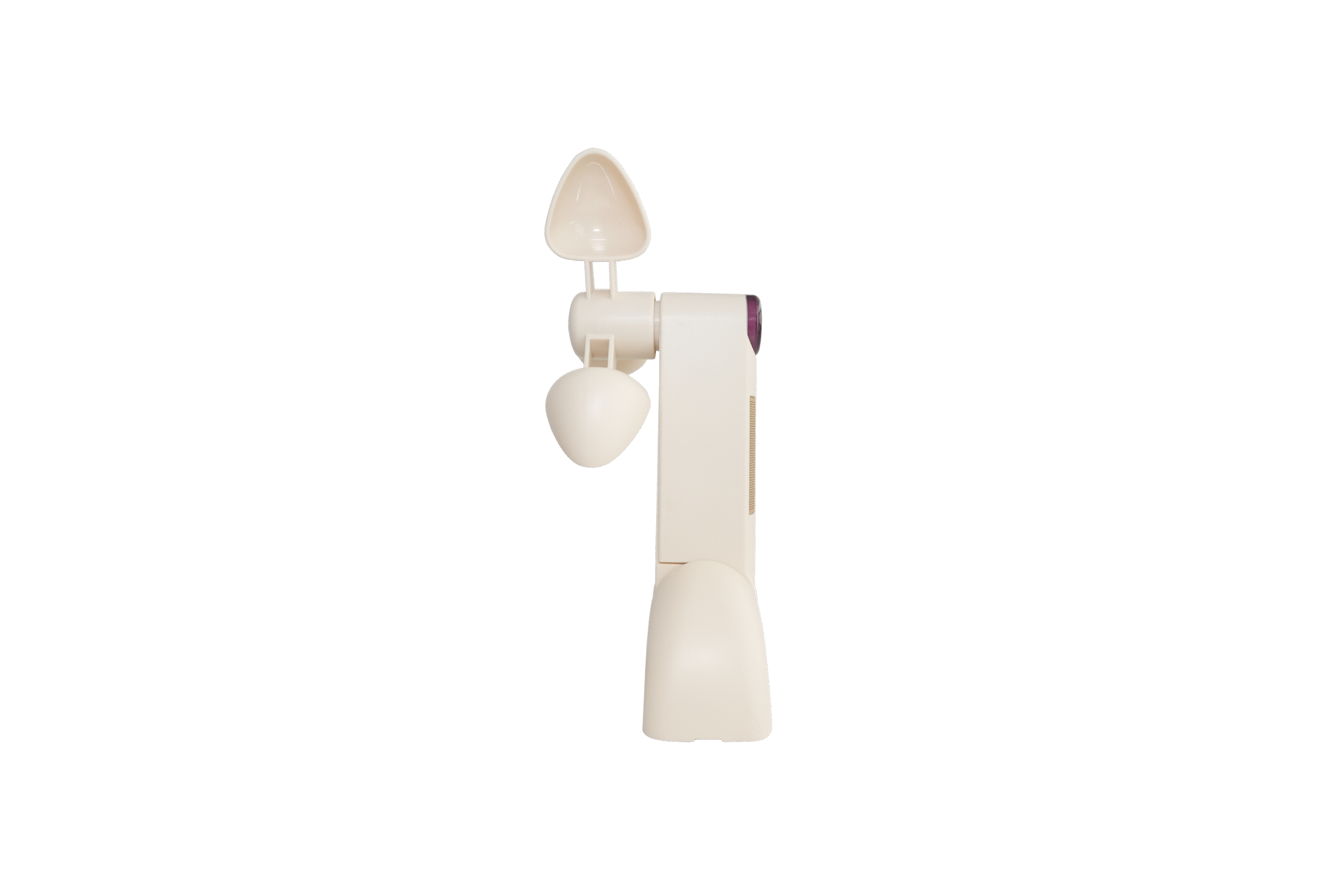

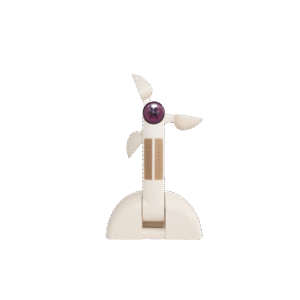

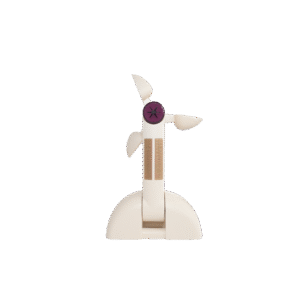

Smart sensor for rain, wind and light – ZIP SCREEN Bellano S25

The smart sensor enables automatic control of ZIP SCREEN shades based on weather conditions. When rain, strong wind or dusk is detected, the shade automatically lowers or raises, ensuring protection of the screen, pergola and users.

The sensor works with motorised ZIP SCREEN systems and allows connection to remote control or mobile app.
Users can precisely set thresholds for wind (10–50 km/h), light (0.2–12 Klux) and precipitation (1–100 mm/h), allowing adjustment based on location and needs.

Compact housing made of UV-resistant plastic, highly sensitive wind sensor with stainless steel bearings and 3 mounting options ensure reliable operation in all weather conditions.

Technical description – Sensor for ZIP SCREEN Bellano S25

• ✅ Functionality:
   – Automatic control of ZIP SCREEN shades based on wind, rain or light conditions
   – Sensor triggers shade closure when hazardous conditions are detected (e.g. strong wind, precipitation, dusk)

• ✅ Control options:
   – Compatible with motorised ZIP SCREEN systems
   – Operated via remote control or mobile app
   – Option to program and manually adjust all parameters

• ✅ Adjustable sensor values:
   – Wind: 10–50 km/h (precise adjustment with rotary knob)
   – Light (dusk): 0.2–12 Klux
   – Precipitation: 1–100 mm/h

• ✅ Power supply:
   – Sensor: DC 12V
   – Receiver: AC 230V / 50Hz
   – Transmitter: DC 3V (2x AAA batteries)
   – Frequency: 433.92 MHz

• ✅ Material and housing:
   – Housing made of UV-resistant plastic – suitable for outdoor use
   – Highly sensitive wind sensor with stainless steel bearings

• ✅ Operating temperature range:
   – From –20 °C to +85 °C

• ✅ Mounting:
   – 3 mounting options (wall, corner, bracket)
   – Adjustable angle for optimal condition detection
   – Easy connection to ZIP SCREEN system Bellano S25
