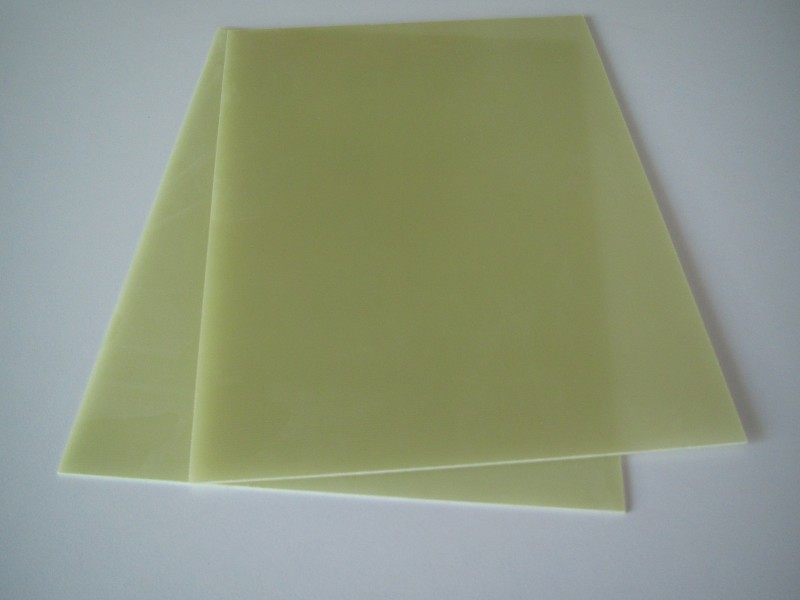

Glass-epoxy G10

G10 is a high-performance laminate made of epoxy resin reinforced with glass fabric, known for its exceptional mechanical strength, thermal stability, and excellent electrical insulation properties. It is a solid and durable material that, due to its resistance to moisture, chemicals, and high temperatures, is widely used in various industrial and electrical applications. G10 is often used as a base material for manufacturing printed circuit boards, insulators, and various structural parts.

Main Properties:

• High mechanical strength and impact resistance

• Excellent electrical insulation properties

• Good thermal stability (operating temperature up to approximately 130 °C)

• Resistance to moisture, chemicals, and corrosion

• Self-extinguishing according to UL 94 V-0 standard

• Dimensional stability and strength under mechanical loads

• Easy mechanical processing

Typical Applications:

• Printed circuit board (PCB) bases

• Electrical insulators and supports in the electrical industry

• Structural parts in mechanical engineering and industry

• Working components in electrical switches and transformers

• Components in the automotive industry and household appliances

Standards:

• NEMA LI 1 (Material standard for G10 laminate)

• IEC 60893 (dielectric insulating materials)

• UL 94 (fire safety)

• RoHS compliance

• REACH compliance

Names according to various standards:

• G10 (NEMA standard)

• IEC 60893: EP GC 203 or similar (depending on detailed composition)

• DIN 7735: HGW 2372.1 (for silicone epoxy laminate sheets)

• UL 94 V-0 (fire classification)

• Epoxy glass laminate
